Benefits of the FireFlex 1230 Units
Designed with user-friendly features, the 1230 units are easy to install and maintain.
The Latest Generation of Clean Agent Systems
- Simple and quick installation thereby reducing costs
- Compact factory assembled and tested systems
- Lockable doors to avoid unauthorized handling
- Clean agent safe for occupants
- Environmentally safe long-term solution
- Available in multiple sizes
- Serial number for easy reference
- FM Approved and UL/ULC Listed as an assembled unit
- Available with seismic construction option up to 2 x 601 lbs cylinders, 46" cabinet
The FireFlex® 1230 cabinets are of the freestanding type and are made of robust 14 gauge steel with a corrosion resistant fire red paint finish, polyester powder-coated and oven-baked on a phosphate base. Cabinets are also provided with one or two locked frontal doors, reducing space requirements for ease of installation and maintenance.
- FM Approved for engineered systems
- UL/ULC Listed for engineered systems
- Compact layout saves floor space
- Fully tested and programmed at the factory
- Unique serial number on every unit
- User-friendly owner's manual with every unit
- Simplified operation and maintenance
- Factory built under ISO-9001 conditions
Different Styles for a better Flexibility
The remote-controlled option provides a junction box where all supervisory and control devices, are prewired to a set of terminals for field wiring to a releasing control panel to be provided by others. The system’s electric actuator must be compatible and listed with the releasing control panel.
Seismic Construction Option
- The FireFlex® 1230 seismic construction option is available with or without panel up to 2 X 601 lbs cylinders on the 46” cabinet.
- The FireFlex® 1230 seismic construction option is tested and qualified in accordance with:
- International Building Code, 2006-2009 Edition
- California Building Code, 2013 Edition
- ICC-ES AC-156, 2010 Edition
FireFlex® 1230 Cabinet Cylinders Capacity
|SEVO 1230 CYLINDERS
|CYLINDERS SIZE||FILL CAPACITY (LBS)||MAX. VOLUME @ 4.5% (700 F)|
Multiple Models and Available Configurations
Our adaptability, in order to better meet our customers' needs, is our main priority.
Dimensions of the cabinet
|36"||35 1/2"||25"||77"||37 3/4"||39 3/4"||15"|
Note : Dimensions and actual size may vary depending on options and configuration selected, please refer to data sheets for exact dimensions.
Dimensions of Remote-Controlled and Self-Contained Units
What FireFlex 1230 units are made of?
FireFlex systems are made of industry-recognized components. We’re proud to work with these amazing partners.
Integrated Releasing Control Panel Option
The optional releasing control panel integrated in the FireFlex® 1230 cabinet is Potter’s model PFC-4410RC. It is provided with a menu-driven programming, including a specific program assigned at the factory. The panel is compatible with many types of fire alarm and supervisory devices such as linear heat detectors, spot type heat and smoke detectors, waterflow and release indicators, low and high air pressure switches, manual pull stations and abort switches.
The control panel also includes an alphanumeric display with 2 lines of 16 characters describing all the system conditions, as well as a set of red and yellow LED lamps individually indicating each of the alarm, trouble and supervisory conditions of the system. Easy to operate control buttons are also provided to activate and operate the system’s various functions.
Using the best technology
The SEVO™ system is UL/ULC Listed and FM Approved. All systems are designed as per the NFPA 2001 standard and in compliance with the limitations and instructions found in the manufacturer’s design manual.
SEVO™ 1230 FORCE500™ Technology

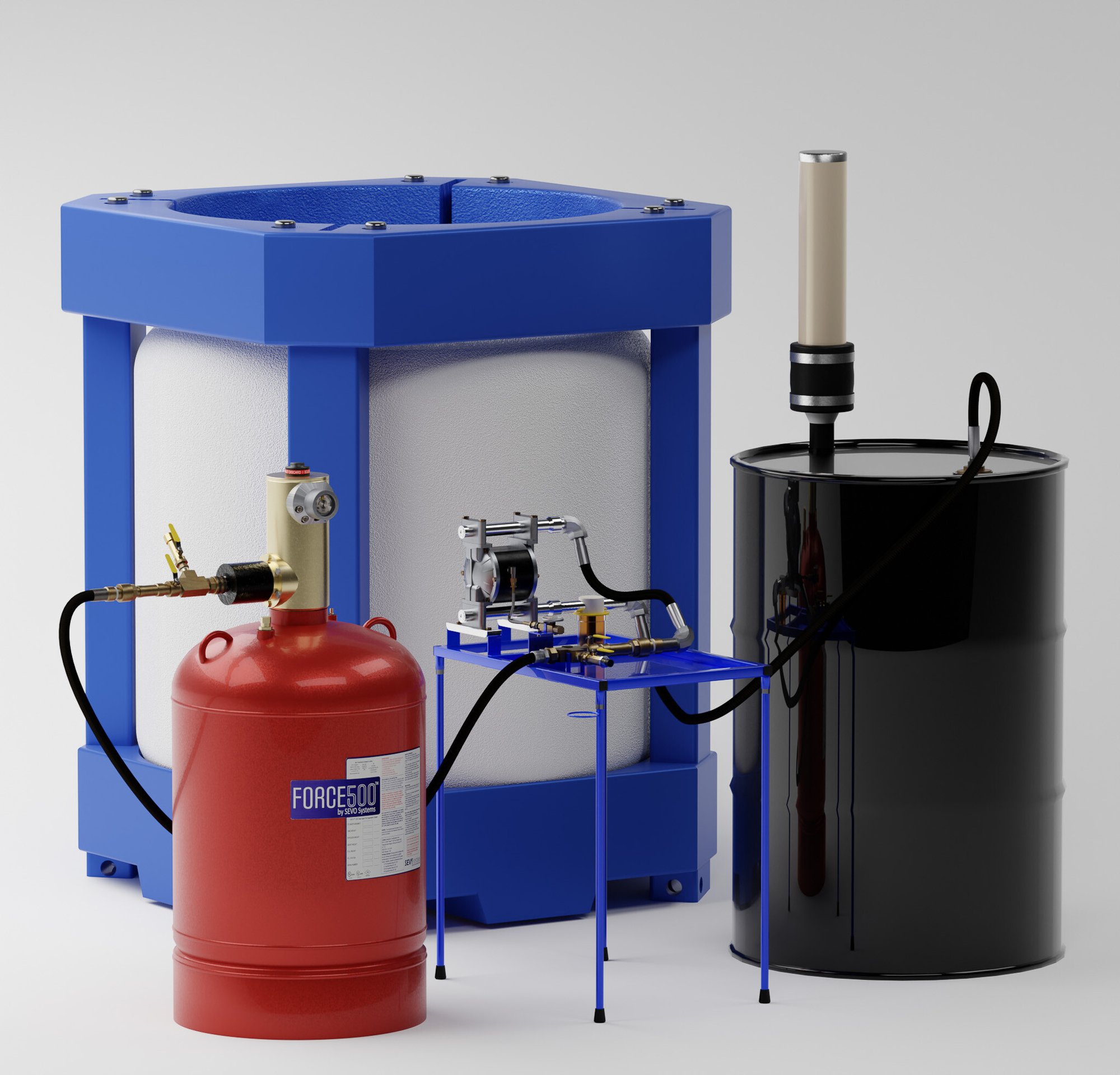

The FireFlex® 1230 system uses SEVO™ 1230 FORCE500™ cylinders pressurized at 500 psi and designed for a high volume discharge rate in order to meet the rapid discharge requirements specified in the NFPA 2001 standard. Discharge valves are of brass construction and are designed as per the pressure differential concept. They are also provided with an integrated pressure safety device, a pressure indicating gauge and an electric actuator.
FireFlex® 1230 CABINET CYLINDER CAPACITY
|CYLINDER SIZE (LBS)
|CABINET WIDTH (IN.)||40||76||164||322||601||850|
Note : 24", 36" and 46" cabinets are available with seismic option.
Why trust the FireFlex team and its systems?
Our cutting-edge systems are an alliance between research, development, quality & durability.
BECAUSE WE ARE INDUSTRY PIONEERS
Since its inception in 1991, FIREFLEX SYSTEMS has been designing and manufacturing state-of-the-art innovative integrated fire protection systems that set the benchmark in the market.
FOR THE WIDEST SELECTION AVAILABLE ON THE MARKET
FIREFLEX SYSTEMS offers the widest selection of integrated systems on the market. Regardless of the hazard to be protected, FIREFLEX is able to offer the best available technology with the widest range of options to suit all needs.
FOR OUR QUALITY CONTROL
FIREFLEX SYSTEMS' commitment, year after year, to quality and continuous improvement has resulted in achieving and maintaining its ISO 9001 quality certification. Its modern facilities are geared towards producing a high-volume of quality integrated systems in a factory-controlled setting.
FOR OUR TECHNICAL SUPPORT
Whether it is through exhibits, conferences, lunch & learn presentations, technical seminars, Webinars or one-on-one technical discussions, FIREFLEX's technical sales representatives draw on their in-depth knowledge and expertise to provide a level of technical support that meets or exceeds customer expectations.
FOR OUR CUSTOMER SERVICE
Our customer service department is readily available to address any product related service call, replacement part or general operation and maintenance questions that may arise. All our integrated product lines possess a serial number which is entered into our database. This enables FIREFLEX to record and track service calls, replacement parts, or any system modifications that have been reported on individual units.
FOR OUR INNOVATIVE PRODUCTS
Actively involved with research and development, FIREFLEX embarked on a new endeavor to better serve the fire protection practitioner in addressing challenging fire protection scenarios that evolve in modern life.
Protects mission-critical facilities
Environmental-friendly Extinguishing Agent
The FireFlex® 1230 system uses 3MTM NovecTM 1230 Fire Protection Fluid. This clean extinguishing agent is based on sustainable technology and is the only chemical agent currently available that not only meets current regulations but also those in the future regulatory framework.
The FireFlex® 1230 integrated systems are thus adapted for use in any mission critical facility requiring a clean extinguishing agent that is not only fast and efficient, but also safe for people and the environment.
- Telecommunication centers
- Server rooms and data storage
- Control rooms
- Art galleries & museums
- Medical treatment centers & laboratories
- Emergency diesel generators
SEVO Discharge Nozzles
The SEVO™ discharge nozzles are designed to provide a complete and rapid vaporization of the Novec™ 1230 fluid as well as properly distribute the agent within the protected space. Standard nozzles are made of aluminum and are available in various sizes, including ½”, 1”, 1½”, 2” and 2½”.Both 180º and 360º models cover a maximum area of 32’ x 32’ with a maximum height of 16’-4” (FM) or14’-0’’ (UL/ULC).
SEVO™ DISCHARGE NOZZLES
3M™ Novec™ 1230 Fire Protection Fluid
Environmental-friendly Extinguishing Agent
Typically used at concentrations from 4.5% to 6%, the 3M™ Novec™ 1230 Fire Protection Fluid is a new generation of halon replacement gas designed to mitigate concerns regarding occupant safety, extinguishing performance and the environment. Contrary to first generation HFC’s, the Novec™ 1230 fluid has key characteristics that define a clean extinguishing agent such as:
- ozone layer depletion potential of zero (ODP)
- global warming potential of 1 (GWP)
- atmospheric lifetime of only 5 days
- widest safety margin for occupants
Talk To An Expert
Whether you want to select, specify, install or maintain our systems, you'll find in this section a range of useful documents related to our integrated systems. For further information, do not hesitate to contact our team of experts.
