Unique Features For Various Applications
The new TOTALPAC® 4 from FireFlex Systems is an innovative solution for protecting your most valuable applications such as :
- Cold Storage & Freezers
- Process Rooms
- Healthcare Facilities
- Server Rooms
- Storage applications
Total Control and Safety
- Self-contained unit prewired to Viking VFR-500 releasing control panels
- Simplified and compact trim with VXD and VXR Viking valves
-
New smaller footprint for certain system sizes

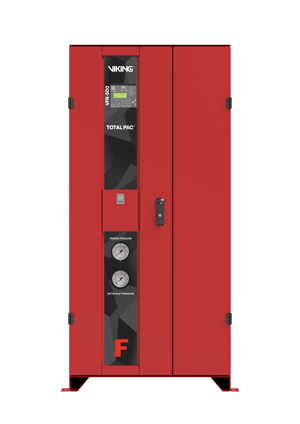

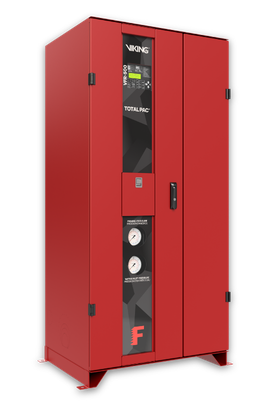

The TOTALPAC® Cabinet
Factory assembly of the TOTALPAC® 4 cabinets ensures that all components have been carefully integrated. All systems are fully programmed and tested at the factory which facilitates the onsite installation and commissioning process.
The FireFlex® cabinets are of the freestanding type and are made of robust 14 gauge steel with a corrosion resistant fire red paint finish, polyester powder-coated and oven-baked on a phosphate base. Cabinets are also provided with two locked frontal doors that are removable without special tools, reducing space requirements for ease of installation and maintenance. Furthermore, all doors are provided with a neoprene gasket to reduce vibrations.
Technical details:
- FM and cULus Approved as a factory assembled unit
- Modular releases (manual, fail-safe, electric & pneumatic)
- Compact layout saves floor space
- Fully tested and programmed at the factory
- Unique serial number on every unit
- Simplified operation and maintenance
- Factory built under ISO-9001 conditions
With a new simplified and more compact trim
Remote-controlled Preassembled Unit
The unit is provided with a junction box atop the sprinkler trim enclosure where all internal devices are prewired to a sturdy set of terminals for field wiring to a releasing control panel to be provided by others.

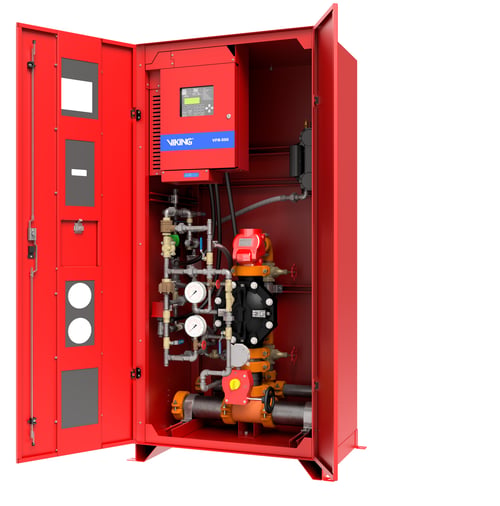

Self-contained Preassembled Unit
Optional Self-contained unit prewired to the Viking VFR-500 releasing control panel installed in an enclosure atop the sprinkler trim enclosure.

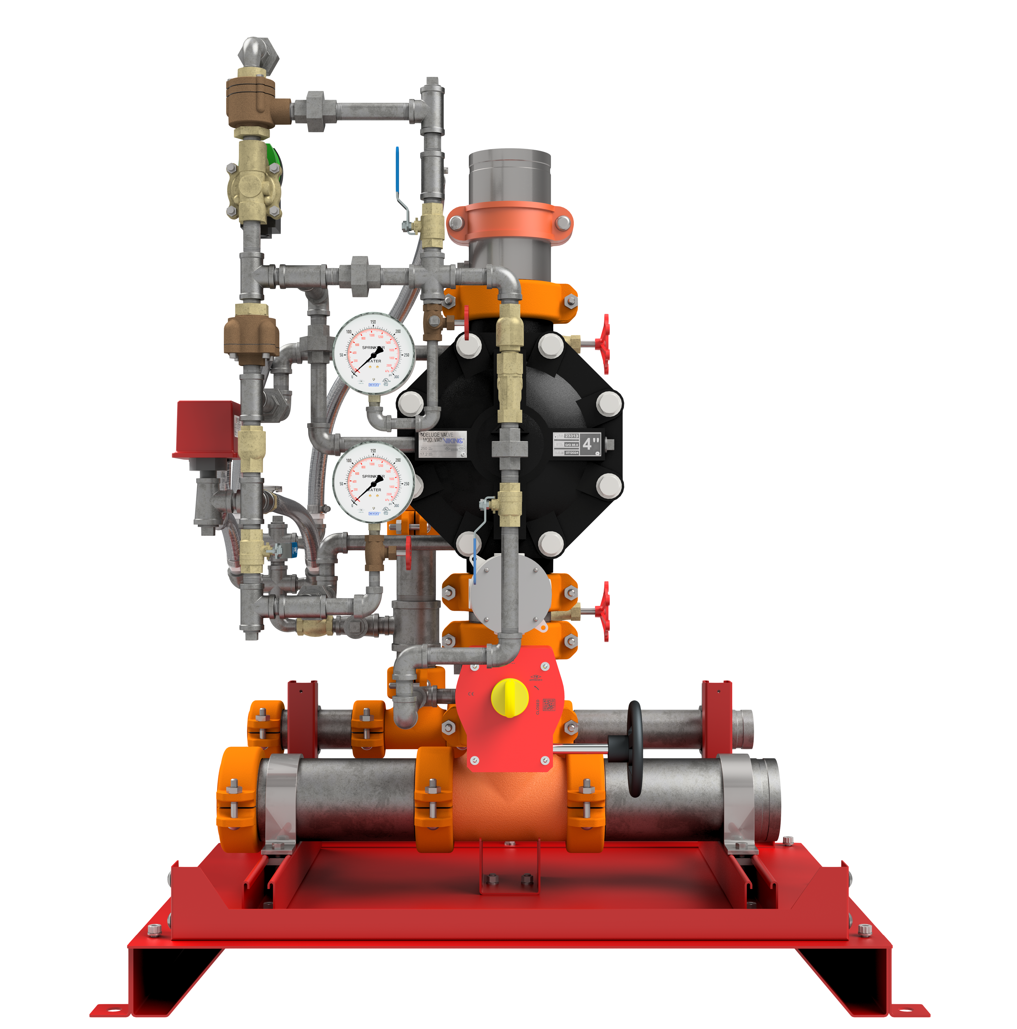

Modular Release Trim
Units are built from subassemblies using quality pipe unions making servicing any part quick and simple. Operating instructions indicated on all valve handles and devices make operation safe and easy to comprehend.
Available Configurations
Preaction
-
Single interlocked with electric or pneumatic release.
-
Double interlocked with electric-pneulectric, electric-pneumatic or pneumatic-pneumatic release
Surefire®
- Failsafe single or double interlocked preaction system
Deluge
- With electric, pneumatic or hydraulic release
Dry Pipe
- Available in 250 psi
Wet Pipe
- Available with retard chamber or excess pressure pump
.png)
Every TOTALPAC 4 Unit configuration meets NFPA requirements and has also been submitted to the authorities where it was subjected to the toughest approval and testing requirements. Every component has been tested and proven by recognized listing laboratories to insure compatibility between each one and their full integration into the final product.
Our modern manufacturing facility allows prefabrication and storage of the most common configurations, making our deliveries the fastest in the industry.
